SNOL 12800/650

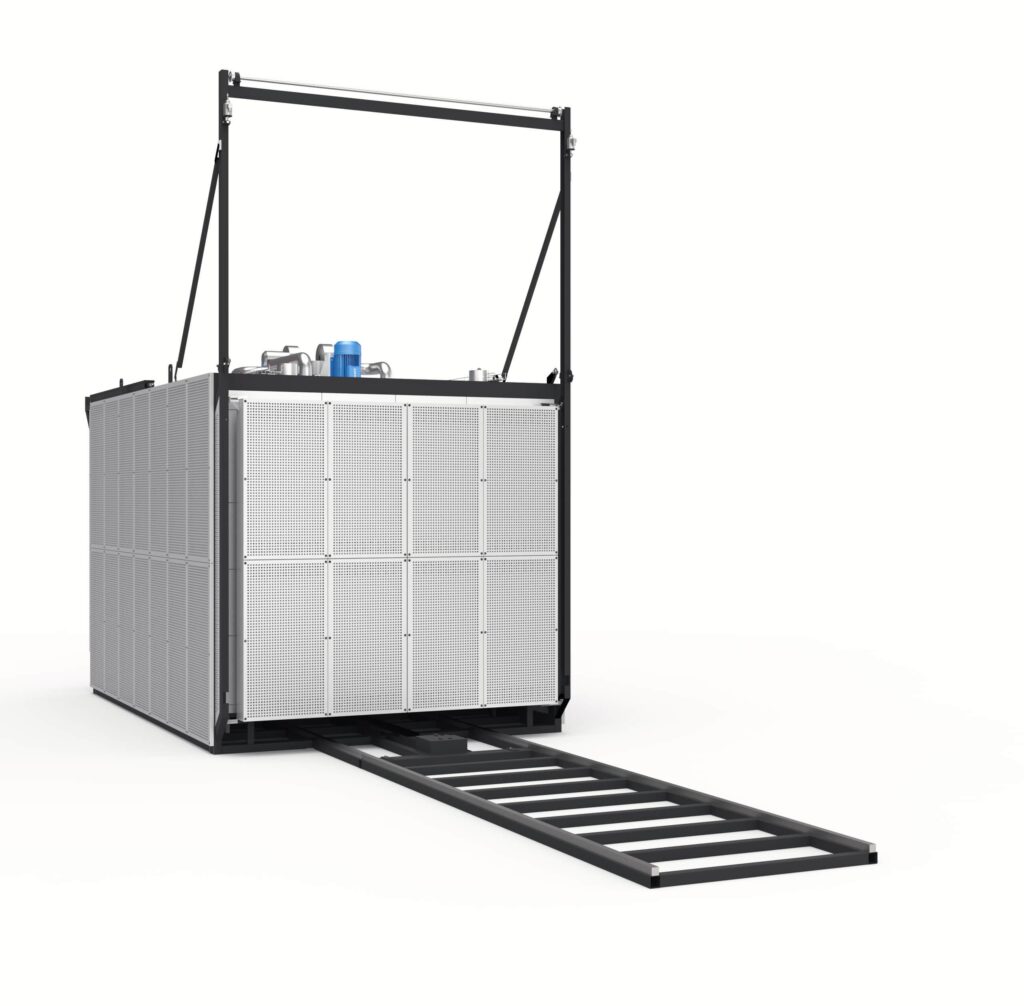

SNOL 12800/600 is designed for the heat treatment of aircraft components and has been delivered to the aerospace industry. Location/customer – UK Year of delivery – 2017

  • According AMS2750F standard (class 2, instrument type C)

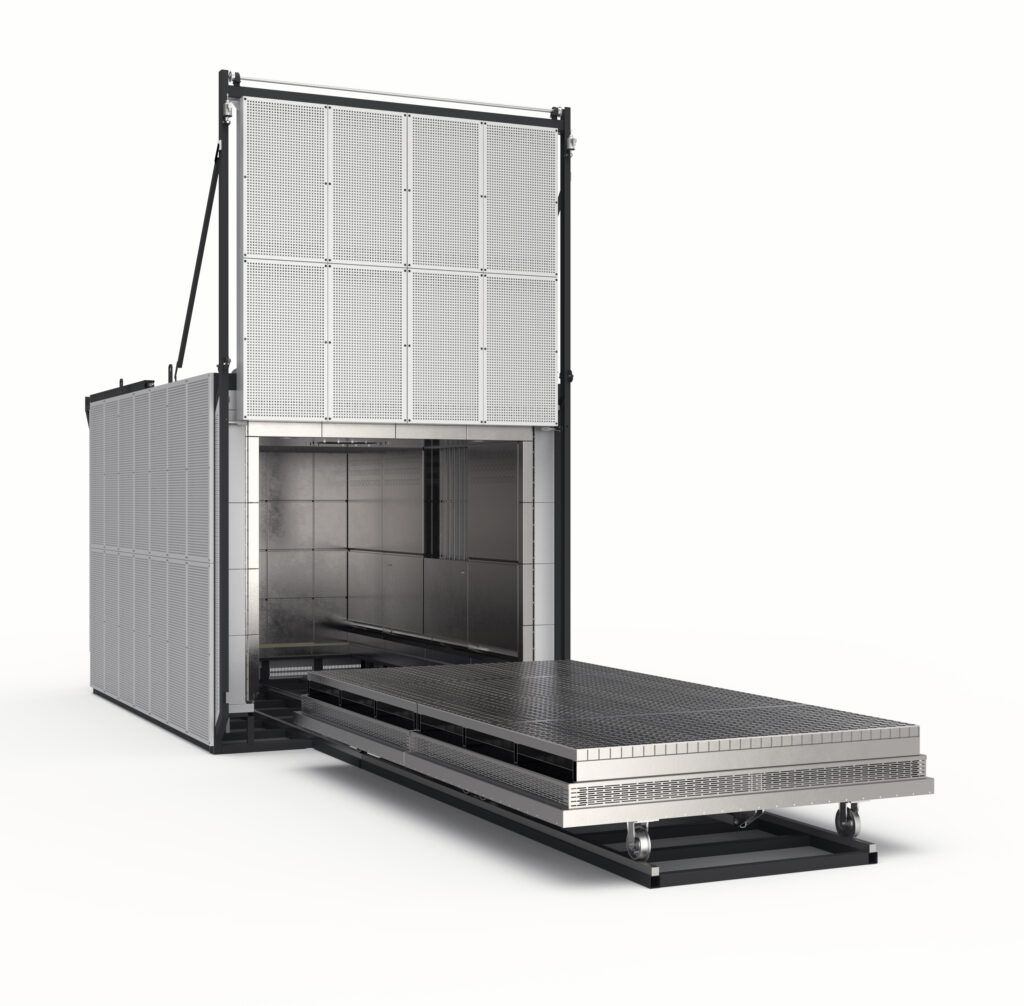

  • Automated car bottom with lift up door construction
  • Forced cooling system
Technical data
SNOL 12800/650
Volume, L
12800
Maximum temperature, °C
650
Continuous operating temperature, °C
T+10-650
Power
120
Rated supply voltage, V
400
Number of phases
3
Rated frequency, Hz
50/60
Chamber width, mm
2000
Chamber depth, mm
4000
Chamber height, mm
1600
Overall width, mm
2820
Overall depth, mm
6030
Overall height, mm
4905
