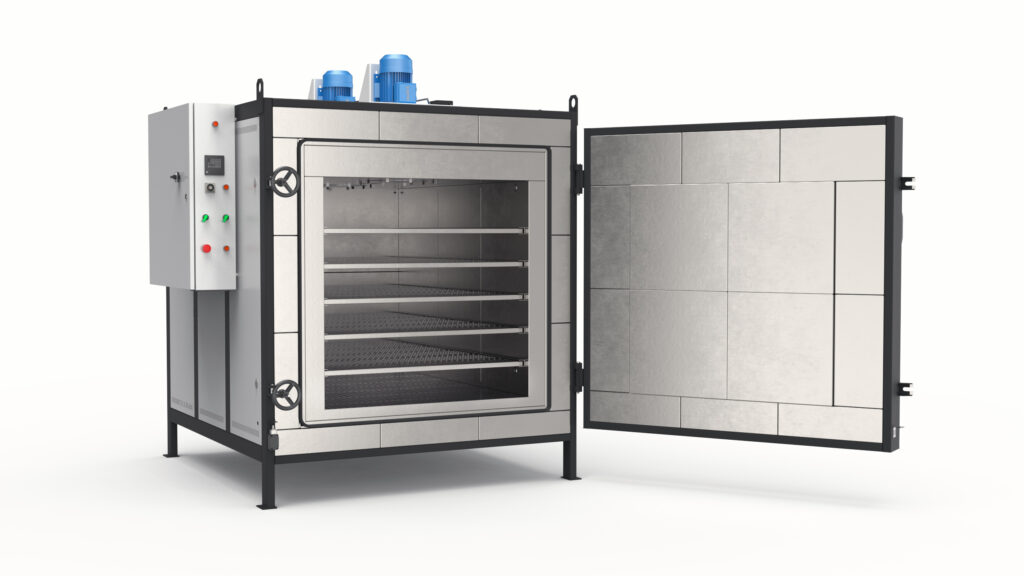

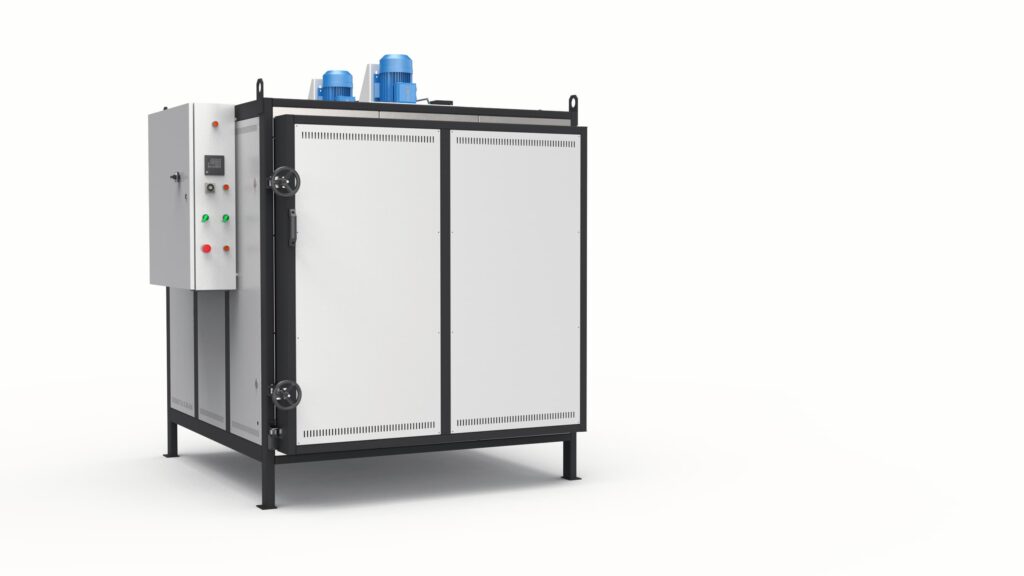

SNOL 1936/200

SNOL1926/200 is designed for the heat treatment of aircraft components and has been delivered to the aerospace industry.

Location/customer – Finland
Year of delivery – 2021

  • According to AMS27025F standard
    ,
  • Precise temperature control and record,
  • 2 pcs. ventilation motors on the top, vertical air flow
    ,
  • Temperature controller and Data recorder Eurotherm series
Technical data
SNOL 1936/200
Volume, L
1936
Maximum temperature, °C
200
Continuous operating temperature, °C
T+10-200
Power
25
Rated supply voltage, V
400
Number of phases
3
Rated frequency, Hz
50/60
Chamber material
Нержавіюча сталь
Airflow
Vertical
Chamber width, mm
1100
Chamber depth, mm
1600
Chamber height, mm
1100
Overall width, mm
1796
Overall depth, mm
2199
Overall height, mm
2198
