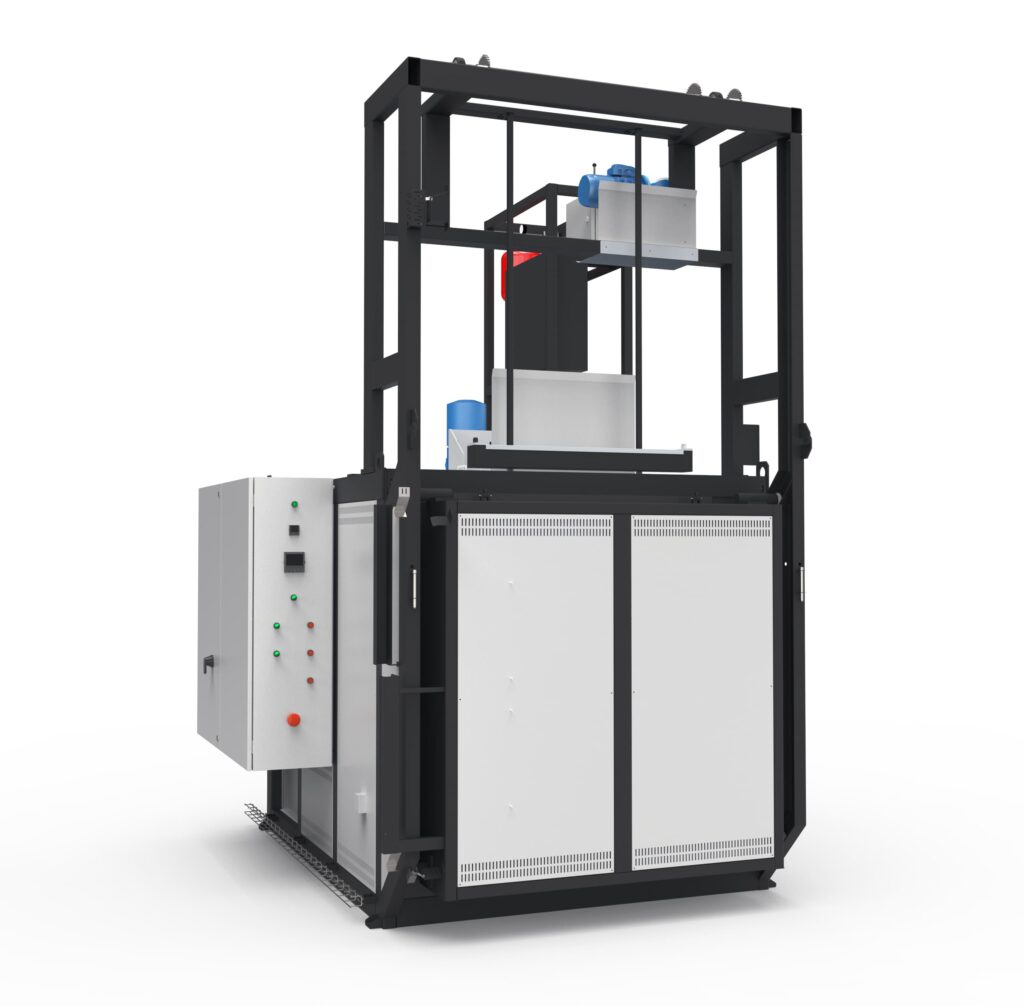

SNOL 2300/1100

SNOL 2300/1100 is designed for the heat treatment of aircraft components and has been delivered to the aerospace industry. Location/customer – UAE Year of delivery – 2021

  • According to AMS27025F standard (Class 2, Instrument type C)
  • Water cooled fans
  • Chiller/cooling system

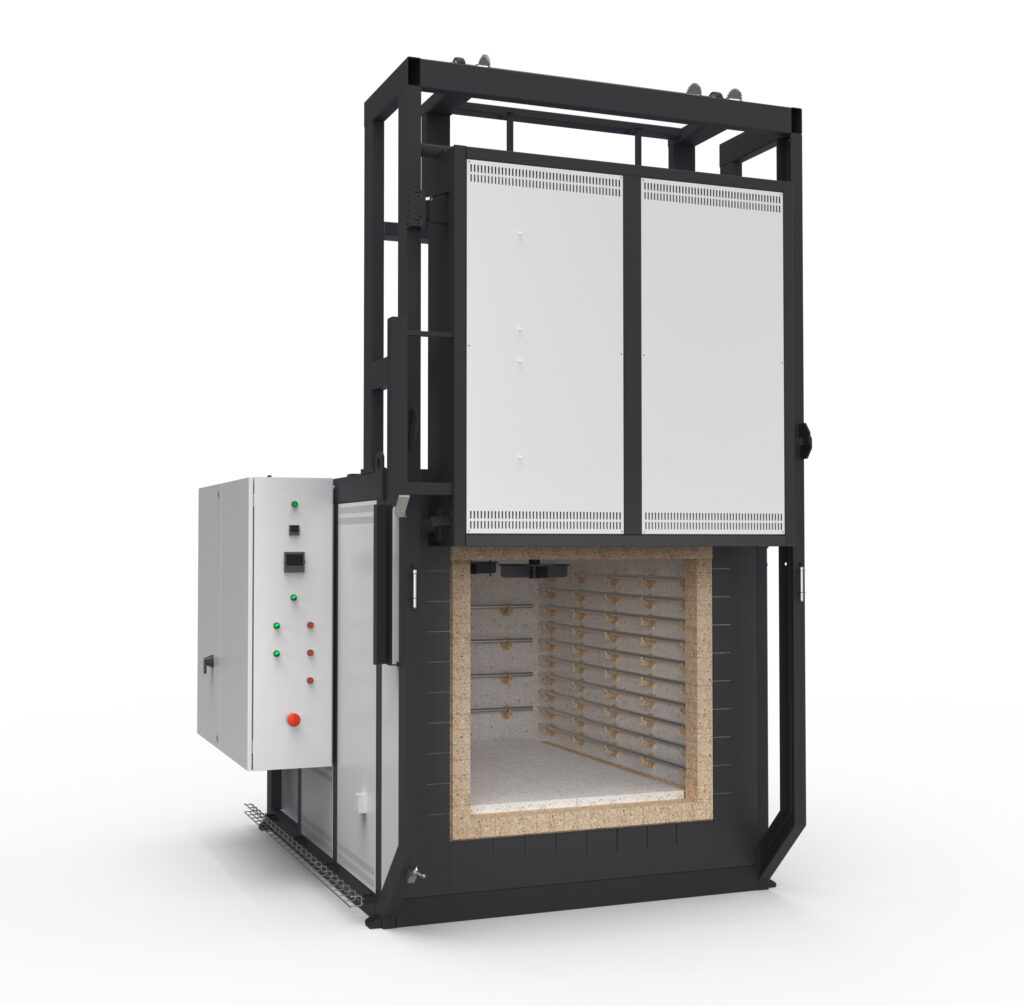

  • Electromechanically upwards door opening
Technical data
SNOL 2300/1100
Volume, L
2300
Maximum temperature, °C
1100
Continuous operating temperature, °C
T+10-1100
Power
140
Rated supply voltage, V
400
Number of phases
3
Rated frequency, Hz
50/60
Chamber width, mm
900
Chamber depth, mm
1500
Chamber height, mm
900
Overall width, mm
2500
Overall depth, mm
2830
Overall height, mm
3767
