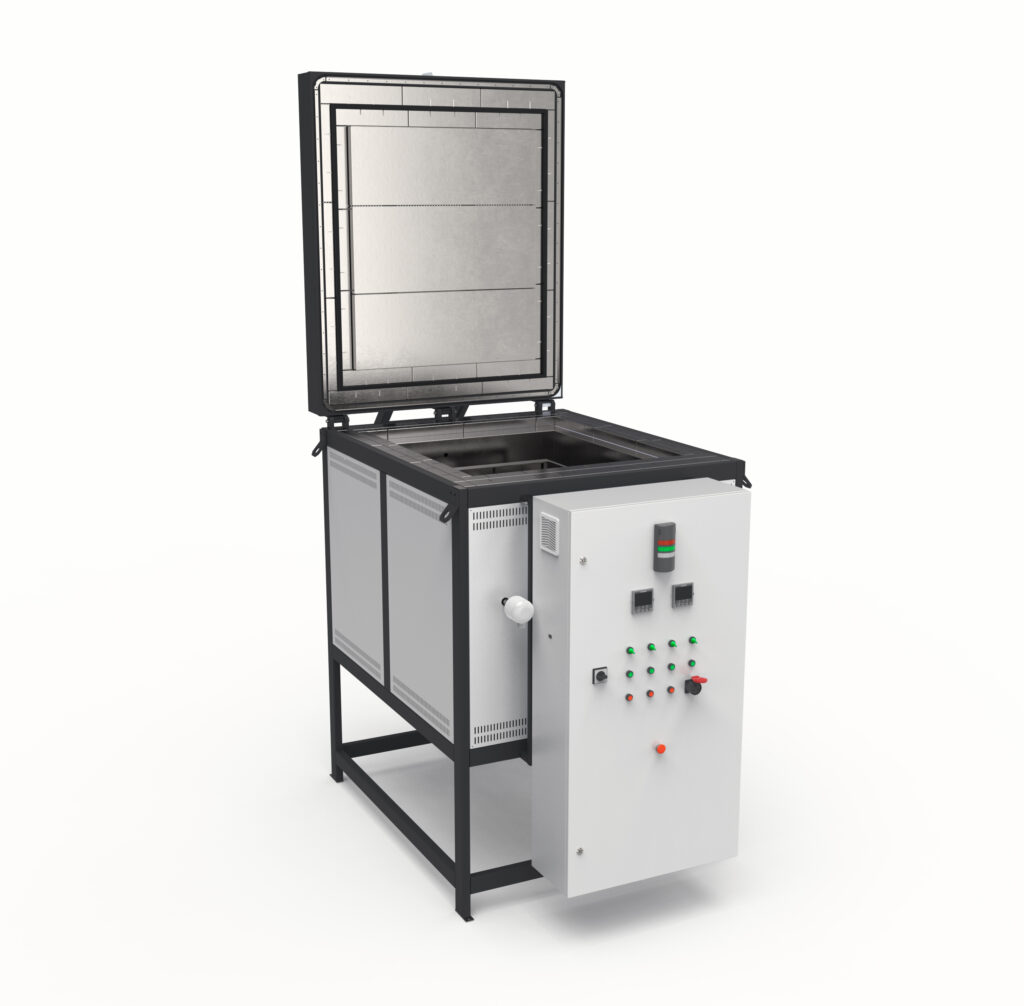

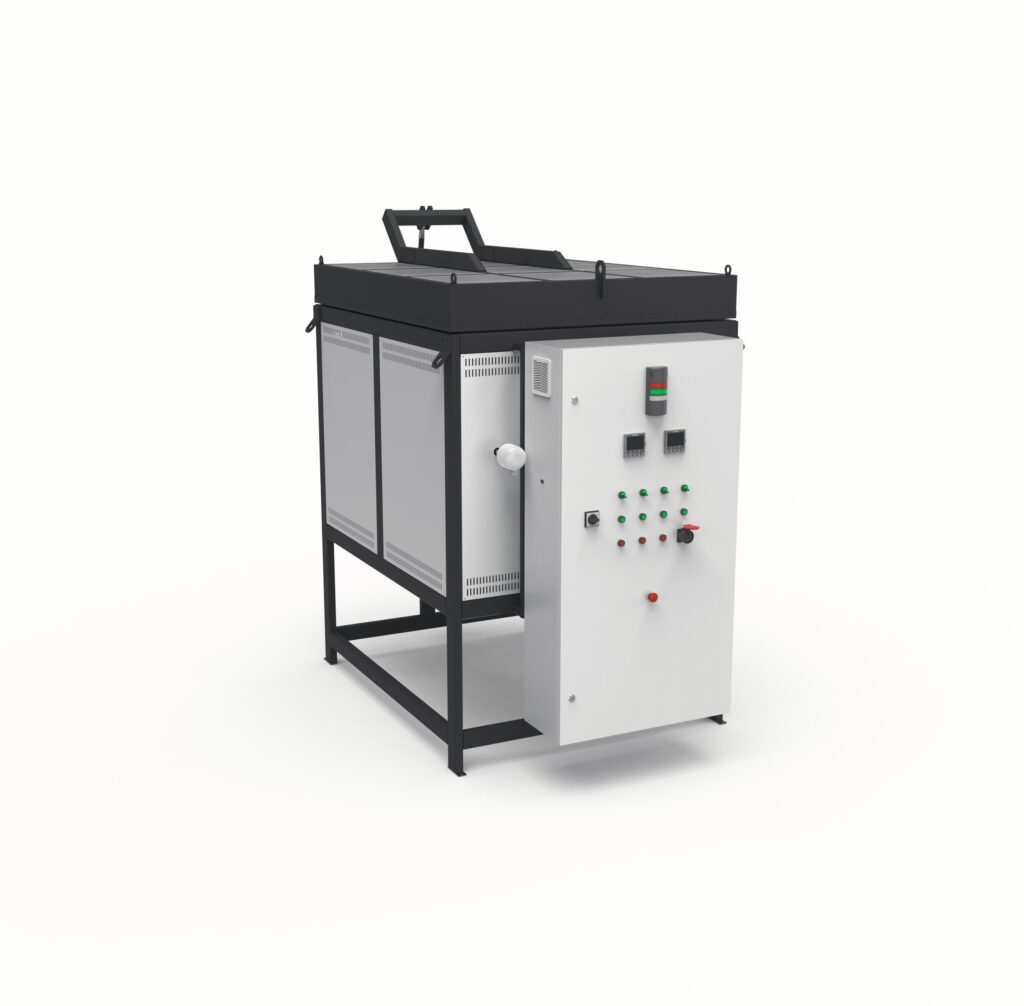

SNOL 760/450N

SNOL 760/450 is designed for the heat treatment of aircraft components and has been delivered to the aerospace industry. Location/customer – France Year of delivery – 2021

  • According to AMS27025F standard (Class 2, Instrument type C)
  • Shaft oven with complete automation ready to be placed in robotic production line
  • Nitrogen ijection system
Technical data
SNOL 760/450N
Volume, L
760
Maximum temperature, °C
450
Continuous operating temperature, °C
T+10-450
Power
40
Rated supply voltage, V
400
Number of phases
3
Rated frequency, Hz
50/60
Chamber width, mm
950
Chamber depth, mm
911
Chamber height, mm
900
Overall width, mm
1527
Overall depth, mm
2708
Overall height, mm
2388
